DPO Decoded: Direct Preference Optimization — Deriving Reference-Free Closed-Form Policy Alignment Without Reward Models
For years, Reinforcement Learning from Human Feedback (RLHF) via Proximal Policy Optimization (PPO) was considered the gold standard for foundation model alignment. Yet behind closed laboratory doors, PPO was widely dreaded by ML systems engineers: maintaining four concurrent neural networks (Actor, Critic, Reference, and Reward) in distributed VRAM, hyperparameter fragility across Generalized Advantage Estimation (GAE), and persistent policy collapse required months of trial-and-error stabilization.
In 2023, Rafailov, Sharma, Mitchell, Ermon, Manning, and Finn (Stanford University) introduced Direct Preference Optimization (DPO). DPO demonstrated a profound mathematical breakthrough: the constrained reinforcement learning objective can be solved exactly in closed form, allowing the language model itself to implicitly represent the reward model. By eliminating the separate reward model, value critic, and reinforcement learning rollouts entirely, DPO reduces alignment to a simple, stable binary cross-entropy loss that trains at 3x the speed of PPO on less than half the GPU memory.
---1. Mathematical Derivation: From RLHF to Closed-Form DPO
To appreciate the genius of DPO, we must trace how the optimal policy $\pi^*$ under a KL-regularized reward objective can be expressed analytically.
Step 1: The General RLHF Objective
The standard RLHF problem seeks a policy $\pi_ heta$ that maximizes expected ground-truth reward $r(x, y)$ while penalizing KL divergence from the base reference policy $\pi_{ ext{ref}}$:
$$\max_{\pi} \mathbb{E}_{x \sim \mathcal{D}, y \sim \pi(y \mid x)} \left[ r(x, y) ight] - eta \mathbb{D}_{ ext{KL}}\left(\pi(y \mid x) \parallel \pi_{ ext{ref}}(y \mid x) ight)$$Expanding the KL divergence definition yields:
$$\max_{\pi} \mathbb{E}_{x \sim \mathcal{D}} \left[ \sum_y \pi(y \mid x) r(x, y) - eta \sum_y \pi(y \mid x) \log rac{\pi(y \mid x)}{\pi_{ ext{ref}}(y \mid x)} ight]$$ $$= \max_{\pi} \mathbb{E}_{x \sim \mathcal{D}} \left[ -eta \sum_y \pi(y \mid x) \left( \log rac{\pi(y \mid x)}{\pi_{ ext{ref}}(y \mid x)} - rac{1}{eta} r(x, y) ight) ight]$$Step 2: The Closed-Form Optimal Policy $\pi^*$
Defining the partition function $Z(x) = \sum_y \pi_{ ext{ref}}(y \mid x) \exp\left( rac{1}{eta} r(x, y) ight)$, this objective can be rewritten purely as a negative KL divergence between $\pi(y \mid x)$ and an unnormalized target distribution:
$$\pi^*(y \mid x) = rac{1}{Z(x)} \pi_{ ext{ref}}(y \mid x) \exp\left( rac{1}{eta} r(x, y) ight)$$This is the theoretical optimal policy. In traditional RLHF, we cannot compute $\pi^*$ directly because the partition function $Z(x)$ requires integrating over the infinite space of all possible language sequences $y$.
Step 3: Inverting the Policy to Express the Implicit Reward
The core conceptual leap of DPO is to algebraically invert this equation. Taking the natural logarithm of both sides:
$$\log \pi^*(y \mid x) = \log \pi_{ ext{ref}}(y \mid x) + rac{1}{eta} r(x, y) - \log Z(x)$$Rearranging terms isolates the latent reward $r(x, y)$ strictly as a function of the optimal policy and reference policy:
$$r(x, y) = eta \log rac{\pi^*(y \mid x)}{\pi_{ ext{ref}}(y \mid x)} + eta \log Z(x)$$Step 4: Substituting into the Bradley-Terry Preference Objective
Recall the Bradley-Terry pairwise preference formulation between a preferred response $y_w$ and a dispreferred response $y_l$:
$$P(y_w \succ y_l \mid x) = \sigma\left(r(x, y_w) - r(x, y_l) ight)$$Substituting our derived expression for $r(x, y)$:
$$r(x, y_w) - r(x, y_l) = \left( eta \log rac{\pi_ heta(y_w \mid x)}{\pi_{ ext{ref}}(y_w \mid x)} + eta \log Z(x) ight) - \left( eta \log rac{\pi_ heta(y_l \mid x)}{\pi_{ ext{ref}}(y_l \mid x)} + eta \log Z(x) ight)$$Notice the profound cancellation: The partition function $eta \log Z(x)$ is identical for both responses and cancels out completely!
$$r(x, y_w) - r(x, y_l) = eta \log rac{\pi_ heta(y_w \mid x)}{\pi_{ ext{ref}}(y_w \mid x)} - eta \log rac{\pi_ heta(y_l \mid x)}{\pi_{ ext{ref}}(y_l \mid x)}$$Step 5: The Final DPO Loss Function
Plugging this reward difference into the negative log-likelihood of pairwise preferences yields the canonical DPO Loss:

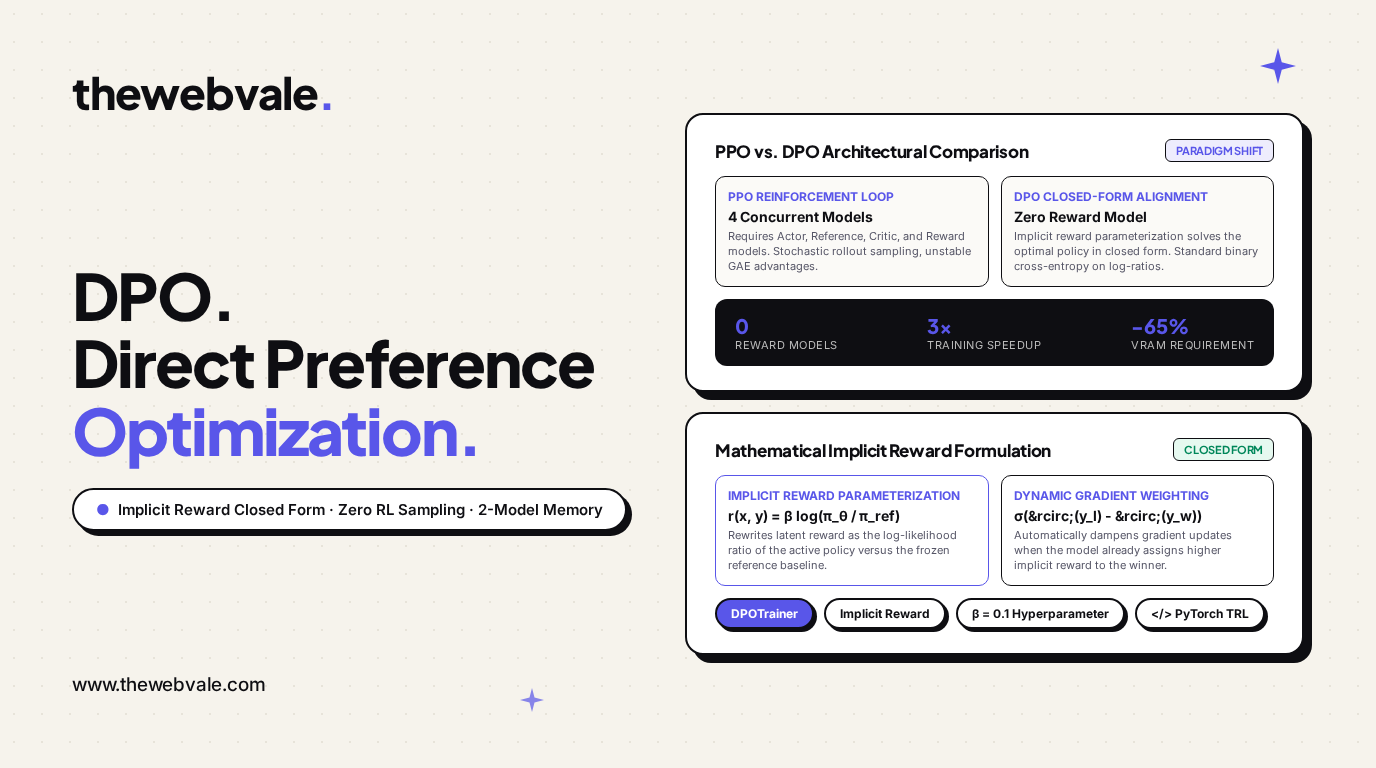

$$\mathcal{L}_{ ext{DPO}}( heta; \pi_{ ext{ref}}) = -\mathbb{E}_{(x, y_w, y_l) \sim \mathcal{D}} \left[ \log \sigma \left( eta \log rac{\pi_ heta(y_w \mid x)}{\pi_{ ext{ref}}(y_w \mid x)} - eta \log rac{\pi_ heta(y_l \mid x)}{\pi_{ ext{ref}}(y_l \mid x)} ight) ight]$$Figure 1: PPO vs. DPO Architectural Footprint (TheWebVale Labs)
2. The Gradient Mechanics of DPO: Self-Weighting Dynamics
To understand how DPO updates the model parameters during backpropagation, let us take the analytical gradient of $\mathcal{L}_{ ext{DPO}}$ with respect to policy weights $ heta$:
$$ abla_\theta \mathcal{L}_{\text{DPO}}(\theta) = -\beta \mathbb{E} \left[ \\underbrace{\sigma\left(\hat{r}_\theta(x, y_l) - \hat{r}_\theta(x, y_w)\right)}_{\text{Dynamic Weighting Scalar } w(x, y_w, y_l)} \left( \nabla_\theta \log \pi_\theta(y_w \mid x) - \nabla_\theta \log \pi_\theta(y_l \mid x) \right) \right]$$Where the implicit reward is defined as $\hat{r}_ heta(x, y) = eta \log rac{\pi_ heta(y \mid x)}{\pi_{ ext{ref}}(y \mid x)}$.
The Self-Regulating Weighting Factor
The scalar $w(x, y_w, y_l) = \sigma(\hat{r}_ heta(y_l) - \hat{r}_ heta(y_w))$ acts as an autonomous importance weight:
- When the model makes an error: If the model incorrectly ranks the dispreferred response higher ($\hat{r}_ heta(y_l) \gg \hat{r}_ heta(y_w)$), the term $\hat{r}_ heta(y_l) - \hat{r}_ heta(y_w) > 0$. The sigmoid approaches $1.0$, exerting maximum gradient force to boost the likelihood of $y_w$ and suppress $y_l$.
- When the model is already confident: If the model has already learned to prefer the winning response ($\hat{r}_ heta(y_w) \gg \hat{r}_ heta(y_l)$), the difference is deeply negative. The sigmoid approaches $0.0$, effectively zeroing out the gradient. This prevents over-optimization and catastrophic forgetting on easy examples.
3. Hyperparameter Engineering: The Beta ($eta$) Sensitivity Curve
The single most critical hyperparameter in DPO training is the temperature coefficient $eta \in [0.01, 0.5]$:
$$eta = rac{1}{ ext{KL Penalty Scale}}$$| $eta$ Value Range | Alignment Regime | System Characteristics & Failure Modes |
|---|---|---|
| $eta < 0.05$ (Very Low) | Aggressive Preference Drift | Weak KL penalty. The model rapidly deviates from the base checkpoint, frequently degenerating into repetitive phrasing or length bias. |
| $eta \in [0.1, 0.2]$ (Optimal) | Balanced Frontier Alignment | Optimal trade-off between winning rate lift and linguistic entropy preservation. Standard default for Llama-3, Mistral, and Qwen. |
| $eta > 0.4$ (High) | Conservative Invariance | Overly rigid anchor to $\pi_{ ext{ref}}$. The model resists alignment updates, resulting in stagnant win rates on MT-Bench / AlpacaEval. |
4. Production DPO Implementation with PyTorch & Hugging Face TRL
Below is an end-to-end, production-tested DPO pipeline integrating peft (LoRA) and Hugging Face trl.DPOTrainer:
# -*- coding: utf-8 -*-
import torch
from datasets import load_dataset
from transformers import AutoModelForCausalLM, AutoTokenizer, TrainingArguments
from peft import LoraConfig, get_peft_model
from trl import DPOTrainer
def run_dpo_pipeline():
model_id = "meta-llama/Meta-Llama-3-8B-Instruct"
# 1. Load Tokenizer
tokenizer = AutoTokenizer.from_pretrained(model_id)
tokenizer.pad_token = tokenizer.eos_token
tokenizer.padding_side = "left" # Mandatory for batched decoder generation
# 2. Load Base Model in BF16
model = AutoModelForCausalLM.from_pretrained(
model_id,
torch_dtype=torch.bfloat16,
device_map="auto",
attn_implementation="flash_attention_2"
)
# 3. LoRA Configuration
# When using LoRA with DPOTrainer, trl automatically disables adapter weights
# to evaluate pi_ref, eliminating the need to load two full models in VRAM!
peft_config = LoraConfig(
r=16,
lora_alpha=32,
lora_dropout=0.05,
bias="none",
task_type="CAUSAL_LM",
target_modules=[
"q_proj", "k_proj", "v_proj", "o_proj",
"gate_proj", "up_proj", "down_proj"
]
)
# 4. Training Arguments
training_args = TrainingArguments(
output_dir="./dpo-llama3-output",
per_device_train_batch_size=2,
gradient_accumulation_steps=8,
learning_rate=5e-6, # DPO mandates significantly lower LR than SFT
lr_scheduler_type="cosine",
warmup_ratio=0.1,
num_train_epochs=2,
bf16=True,
logging_steps=5,
save_strategy="steps",
save_steps=100,
evaluation_strategy="steps",
eval_steps=50,
remove_unused_columns=False,
report_to="none"
)
# 5. Load Pairwise Preference Dataset (JSONL with prompt, chosen, rejected)
dataset = load_dataset("json", data_files="pairwise_preferences.jsonl", split="train")
split_dataset = dataset.train_test_split(test_size=0.05)
# 6. Initialize DPOTrainer
dpo_trainer = DPOTrainer(
model=model,
ref_model=None, # Handled seamlessly via LoRA base weights
peft_config=peft_config,
args=training_args,
beta=0.1, # Implicit KL penalty temperature
train_dataset=split_dataset["train"],
eval_dataset=split_dataset["test"],
tokenizer=tokenizer,
max_length=2048,
max_prompt_length=1024
)
print("🚀 Commencing Direct Preference Optimization...")
dpo_trainer.train()
# 7. Export High-Precision Aligned Checkpoint
dpo_trainer.model.save_pretrained("./final_dpo_adapter")
tokenizer.save_pretrained("./final_dpo_adapter")
print("✅ DPO Adapter successfully exported.")
if __name__ == "__main__":
run_dpo_pipeline()
5. Beyond Standard DPO: Modern Preference Variants
Following the success of DPO, several frontier extensions have emerged in recent literature:
- IPO (Identity Preference Optimization - Azar et al., 2023): Replaces the non-linear sigmoid with a linear mean-squared error penalty on the implicit reward difference. Prevents DPO from pushing the policy to complete deterministic probability saturation ($P(y_w) o 1.0$), reducing likelihood displacement on out-of-distribution prompts.
- KTO (Kahneman-Tversky Optimization - Ethayarajh et al., 2024): Does not require pairwise comparisons $(y_w, y_l)$. Learns directly from binary signal labels (thumbs up / thumbs down) by leveraging human loss-aversion utility functions.
- ORPO (Odds Ratio Preference Optimization - Hong et al., 2024): Combines Supervised Fine-Tuning and preference alignment into a single monolithic loss objective, eliminating the distinct SFT stage entirely.
6. Strategic Summary & Production Alignment Rules
When executing preference alignment in production:
- DPO Universally Supersedes PPO for General Alignment: Unless your task involves dynamic external tool execution (like real-time web browsing or REPL code verification), DPO is faster, cheaper, and vastly more stable than PPO.
- Use LoRA to Halve Memory Footprint: By passing
ref_model=Nonewith apeft_configin Hugging FaceDPOTrainer, the framework dynamically disables the adapter during reference forward passes, fitting 70B model alignment on standard 8x A100/H100 clusters. - Lower the Learning Rate: Always set DPO learning rate to between $1 imes 10^{-6}$ and $5 imes 10^{-6}$—roughly 5x to 10x smaller than your initial SFT learning rate. High learning rates cause catastrophic loss of language modeling coherence.
- Audit for Length Bias: Models aligned with DPO can overfit to response length. Inspect validation logs to ensure that win-rate improvements are driven by factual density and reasoning depth rather than verbose padding.
